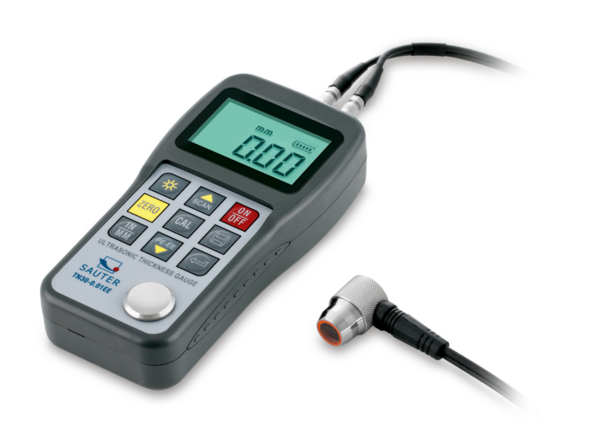

SAUTER, TN 30-0.01EE | Ultrasonic Thickness Gauge external
Prod #TN 30-0.01EE
Description
- External measuring head
- USB data interface, as standard
- Scan mode (10 measurements per sec.) or single point measuring mode possible
- Internal memory for up to 20 files (with up to 100} values per file)
- Selectable measuring units: mm inch
- Two measuring modes to determine material thickness:
- Pulse-Echo mode
- Echo-Echo mode - Echo-Echo measuring: Determining the actual thickness of materials irrespective of any coating which might be present. In this way, the wall thickness of pipes, for example, can be determined in a non-destructive manner, without having to remove the coating and the measurement can be shown on the display, with the adjustment for the coating thickness already taken into account
- Echo-Echo measurements are only possible with the measuring head included as part of the delivery (SAUTER ATU-US12, see internet)
- Scope of delivery: Operating instructions, batteries, external measuring head (∅ 10 mm) and ultrasound contact gel
- Delivered in a robust carrying case
Applications
Main fields of application / Primary application areas
- Metal processing and mechanical engineering
- Oil and gas industry
- Aerospace engineering
- Plastics technology
- Shipping industry
Product Overview
Technical Data
| Measuring range pulse-echo | 0,65 mm – 600 mm |
| Measuring range echo-echo | 3 mm – 30 mm |
| Readability material thickness [d] (mm) | 0,01 mm |
| Tolerance (% of [Max]) | 0,5% |
| Units | mm, inch |
| Speed of sound | 1000 m/s – 9999 m/s |
| Measuring head measuring frequency | 5 MHz |
| Battery | 2×1.5 V AA |
| Memory function | |
| Material housing | plastic |
| Dimensions completely mounted (W×D×H) | 150×74×32 mm |
| Interfaces | USB-Device |
| Cable length | 0,9 m |
| GTIN/EAN number | 4045761159815 |
